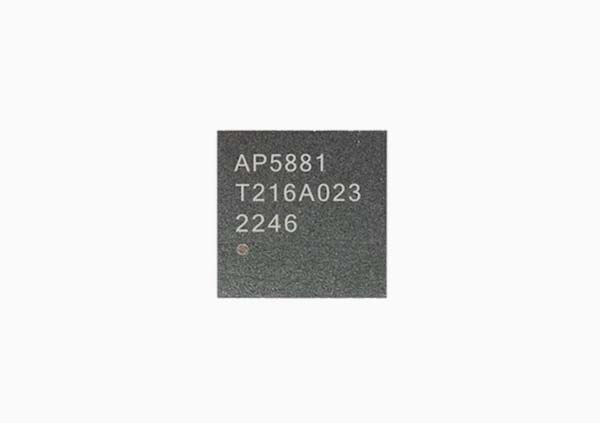

AP5881

Chipset: Synaptics
Antenna: External
Interface: SDIO V3.0/2.0 and PCIe 3.0 Gen2 and USB2.0
Support: Linux, Android

博通方案802.11ax/ac/a/b/g/n Tri-band WiFi SiP Module (WiFi 6/6E), 1T1R

Product Overview

AP5881 is a fully Wi-Fi 6E functionalities module with seamless roaming capabilities and advance security, also it can associate with different vendors’ Wi-Fi 6E or legacy Access Points / Routers and run up to PHY rate of 600Mbps with single stream. Furthermore AP5881 included PCIe3.0 Gen2 and SDIO v3.0 and USB v2.0 alternative interface for Wi-Fi.

In addition, this compact module is a total solution for a combination of Wi-Fi + BT technologies. The module is specifically developed for tablet, OTT box and portable & mobile devices.

Suitable Application

This module is a total solution for a combination of 11ax WiFi 6 technologies. The module is specifically developed for tablets, OTT boxes, and portable devices, thin client devices, Gaming machines, etc.

Certifications

Environmental Compliance


ROHS	Reach

Specification

STANDARD
WI-FI	IEEE 802.11ax/ac/a/b/g/n WiFi Module
Chipset	Synaptics
Host Interface	WiFi: SDIO V3.0/2.0 and PCIe 3.0 Gen2 and USB2.0

RADIO
Antenna	External
Operating Frequency	2.4GHz ISM Band
	2.400GHz~2.4835GHz 5/6GHz UNII Band 5.15~5.35GHz、5.47~5.725GHz、5.725~5.85GHz、5.955~6.415GHz 6.435~6.515GHz、6.535~6.855GHz、6.875~7.115GHz Subject to local regulations

MODULATIONS
802.11b	DSSS (DBPSK, DQPSK, CCK)
802.11g/n	OFDM (BPSK, QPSK, 16-QAM, 64-QAM)
802.11a	OFDM (BPSK, QPSK, 16-QAM, 64-QAM)
802.11n	OFDM (BPSK, QPSK, 16-QAM, 64-QAM)
802.11ac	OFDM (BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM)
802.11ax	OFDMA (BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM)
