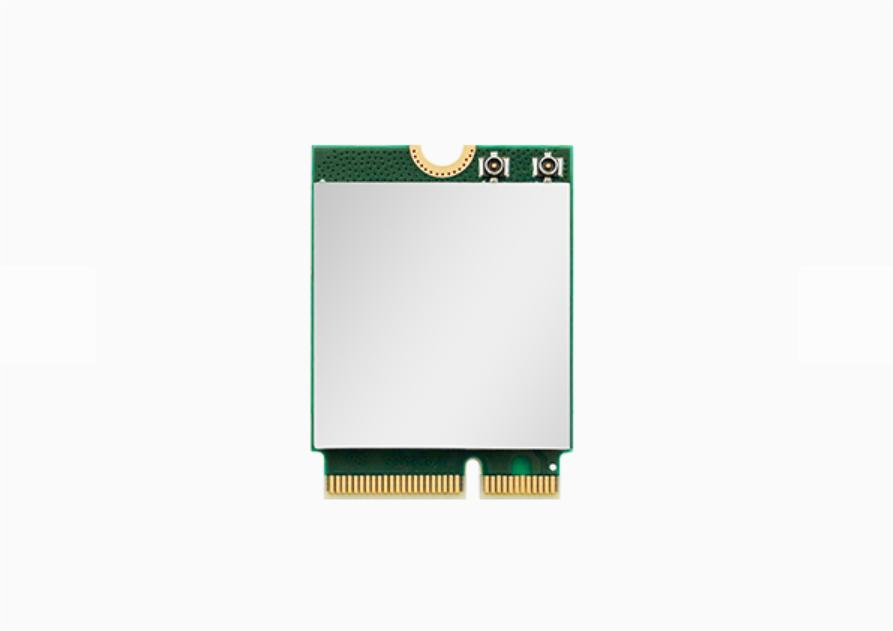

WNFQ-268AXI(BT)

Chipset: Qualcomm Atheros WCN6856
Antenna: 2 x IPEX MHF4 connectors, 2T2R
Interface: PCIe: WLAN ; USB: Bluetooth
Supports Tri-Band Dual Concurrent Design
Support: Windows, Linux (Open Source)

802.11ax/ac/a/b/g/n Industrial Capable Tri-band WiFi +Bluetooth 5.2 Combo, M.2 2230 (E KEY) Module (WiFi 6), Qualcomm, 2T2R

产品概述

WNFQ-268AXI(BT)，首款基于 Qualcomm 的 WiFi-6 (802.11ax) 模块，采用 M.2 2230 E 密钥外形，运行 PCIe (Wifi) 和 USB (BT)，支持 TBDC（三频双并发）模式，但具有三频功能（2.4GHz、5GHz 和 6GHz）。WNFQ-268AXI(BT) 能够同时运行 2.4GHz 和 5GHz 或 6GHz，并支持完整的 IEEE802.11 ax/ac/a/b/g/n 协议，最高 160MHz 模式。

WNFQ-268AXI(BT) 在 MU-MIMO 模式下设计有 2 个空间流（2T2R，或 2×2）。WNFQ-268AXI(BT) 采用标准的 M.2 E key 2230 外形尺寸，可以适应所有预先集成了 M.2 适配器的现有平台，无需额外的平台设计工作。

利用 Qualcomm WCN6856 芯片组，软件方面的 WNFQ-268AXI(BT) 支持 Windows，Linux（开源）。该模块能够在x86平台和基于ARM的平台上运行，并支持STA模式和软AP模式*，推荐运行在应用包括：数字标牌/POS、加固型计算机/平板电脑、无风扇自动化PC和其他工业需要高速数据传输的环境应用。

适用应用

Industrial PC	In Vehicle PC
In Vehicle Router	Outdoor IPTV
Vehicle mounted front	Rear Terminal UAV
Robot	Intelligent Gateway

参数特性

STANDARD
WI-FI	IEEE 802.11ax/ac/a/b/g/n
Bluetooth	Bluetooth V5.2, V5.1, V5.0, V4.2, V4.1, V4.0LE, V3.0, V2.1+EDR
Chipset	Qualcomm Atheros WCN6856
Host Interface	WLAN : PCIe Bluetooth : USB

RADIO
Antenna	2 x IPEX MHF14connectors
Operating Frequency	802.11ax/ac/a/b/g/n ISM Band
	2.412GHz~2.484GHz 5.150GHz~5.850GHz 5.925GHz~7.125GHz *Subject to local regulations

MODULATIONS
802.11b	DSSS (DBPSK, DQPSK, CCK)
802.11g	OFDM (BPSK, QPSK, 16-QAM, 64-QAM)
802.11n	OFDM (BPSK, QPSK, 16-QAM, 64-QAM)
802.11a	OFDM (BPSK, QPSK, 16-QAM, 64-QAM)
802.11ac	OFDM (BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM)
802.11ax	OFDM (BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM，1024-QAM)

POWER & SENSITIVITY
WiFi	Power – TX (2.4G± 2dBm，5G&6G±2dBm)	Sensitivity – RX
11b @11Mbps	18dBm	≤ -90dBm
11g @ 54Mbps	17.5dBm	≤ -76.5dBm
11gn HT20 @ MCS 7	16dBm	≤ -73dBm
11gn HT40 @ MCS 7	16dBm	≤ -71dBm
11a @ 54Mbps	17.5dBm	≤ -77dBm
11an HT20 @ MCS 7	16dBm	≤ -76dBm
11an HT40 @ MCS 7	15.5dBm	≤ -73dBm
11ac VHT80 @ MCS 9	15dBm	≤ -62dBm
11ac VHT160 @ MCS 9	14dBm	≤-58dBm
11ax 5GHz
11ax HE20 @ MCS 11	12.5dBm	≤-64.5dBm
11ax HE40 @ MCS11	12dBm	≤-63.5dBm
11ax HE80 @ MCS 11	10dBm	≤-59dBm
11ax HE160 @ MCS 11	10dBm	≤-56.5dBm
11ax 6GHz
11ax HE20 @ MCS 11	10.5dBm	≤-63dBm
11ax HE40 @ MCS 11	10dBm	≤-61dBm
11ax HE80 @ MCS 11	9.5dBm	≤-58dBm
11ax HE160 @ MCS 11	8dBm	≤-55dBm
Bluetooth
3Mbps	0 ≦Output Power ≦14dBm	<0.1% BER at -70dBm

POWER CONSUMPTION
Continue TX	951mA（2G+5G）,935mA（2G+6G）
Continue RX	279mA（2G+5G），279mA（2G+6G）

ENVIRONMENTAL
Operating Voltage	DC 3.3V
Temperature Range	-40~ 75°C (Operating)	-45 ~ 90°C (Storing)
Humidity(Non-Condensing)	5 ~ 90% (Operating)	5 ~ 90% (Storing)
