WPEQ-160ACN(BT)

Chipset: Qualcomm Atheros QCA9377-7
Antenna: 2 x IPEX MHF1 connectors, 1T1R
Interface: USB: WLAN
Output Power up to 19dBm
Support: Windows 7/8.1/10

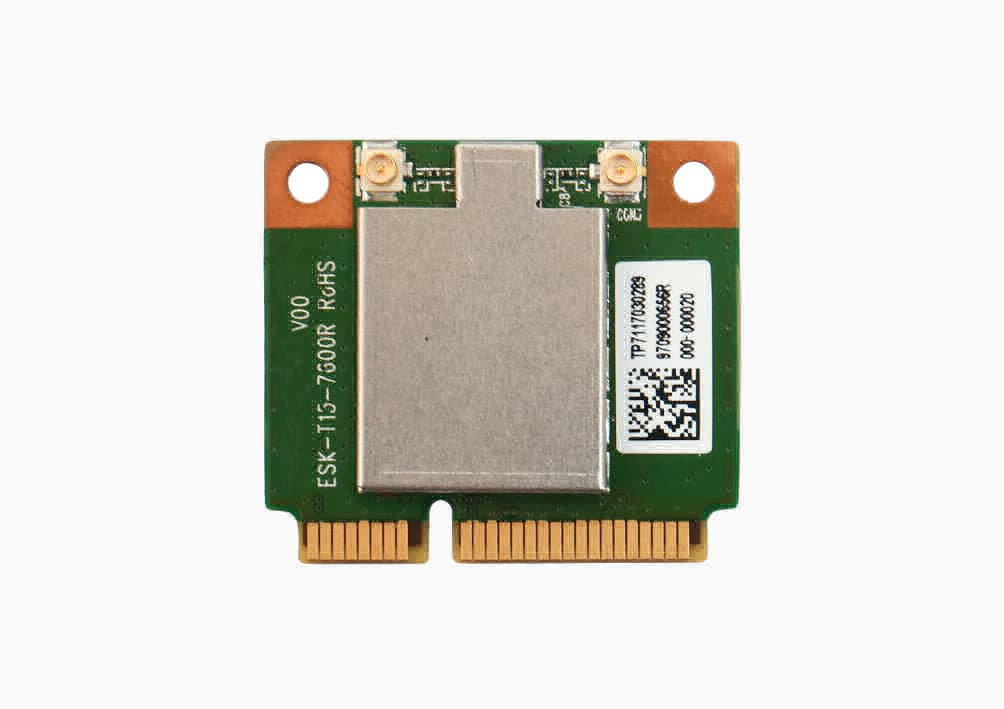

802.11ac/a/b/g/n Wi-Fi Combo Half Mini PCIe Module (WiFi 5), Qualcomm QCA9377-7, 1T1R

产品概述

WPEQ-160ACN(BT) is an 802.11ac/a/b/g/n 2.4GHz+5GHz half-mini PCIe module based on Qualcomm QCA9377-7 chipset. It supports 1T1R with RX diversity technology, which runs up to 433Mbps, provides higher throughput performance and reliability. The WPEQ-160ACN(BT) supports 20/40/80MHz and 256-QAM to maximize bandwidth efficiency.

WPEQ-160ACN(BT) is a single-die wireless local area network (WLAN) solution to support 1×1 802.11ac/a/b/g/n WLAN standards, designed to deliver superior integration of WLAN and low-energy technology. QCA9377 supports high-speed Wi-Fi connectivity and enriched media experiences for virtually all connected devices. It is optimized for energy efficiency, which is critical to extending the battery life of portable devices. QCA9377-7, which supports a low power USB 2.0 interface for WLAN.

适用应用

Industrial PC	In Vehicle PC
In Vehicle Router	Outdoor IPTV
Vehicle mounted front	Rear Terminal UAV
Robot	Intelligent Gateway

参数特性

STANDARD
WI-FI	IEEE 802.11ac/a/b/g/n
Chipset	Qualcomm Atheros QCA9377-7
Host Interface	WLAN: USB

RADIO
Antenna	2 x IPEX MHF1 connectors
Operating Frequency	802.11 ac/a/b/g/n ISM Band
	2.412GHz~2.472GHz 5.180GHz~5.825GHz *Subject to local regulations

MODULATIONS
802.11b	DSSS (DBPSK, DQPSK, CCK)
802.11a/g	OFDM (BPSK, QPSK, 16-QAM, 64-QAM)
802.11n	OFDM (BPSK, QPSK, 16-QAM, 64-QAM)
802.11n	OFDM (BPSK, QPSK, 16-QAM, 64-QAM)
802.11ac	OFDM (BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM)

POWER & SENSITIVITY
WiFi	Power – TX (± 2dBm)	Sensitivity – RX
11b @11Mbps	19dBm	≤ -76dBm
11g @ 54Mbps	16dBm	≤ -74dBm
11gn HT20 @ MCS 7	16dBm	≤ -70dBm
11gn HT40 @ MCS 7	16dBm	≤ -68dBm
11a @ 54Mbps	13dBm	≤ -73dBm
11an HT20 @ MCS 7	13dBm	≤ -67dBm
11an HT40 @ MCS 7	13dBm	≤ -63dBm
11ac HT80 @ MCS 9	10dBm	≤ -55dBm

POWER CONSUMPTION
Continue TX	400mA
Continue RX	200mA

ENVIRONMENTAL
Operating Voltage	DC 3.3V
Temperature Range	-20~ 70°C (Operating)	-30 ~ 85°C (Storing)
Humidity(Non-Condensing)	5 ~ 90% (Operating)	5 ~ 95% (Storing)
