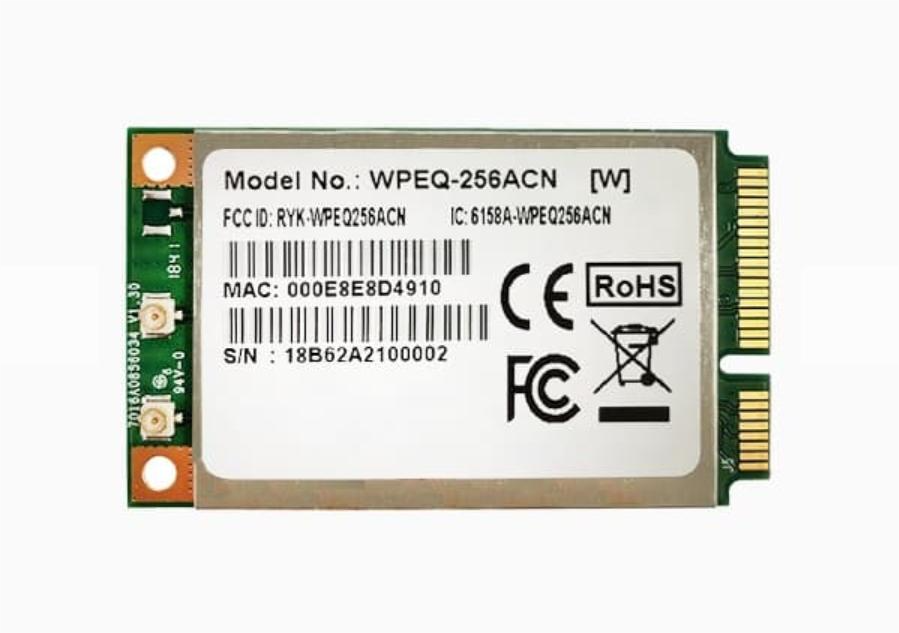

WPEQ-256ACN

  • 芯片组：Qualcomm Atheros QCA9882-BR4A
  • 天线：2xIPEX connectors，2T2R
  • 接口：PCIe :WLAN
  • 输出功率高达 20dBm
  • 支持：Linux
802.11ac/a/b/g/n Mini PCIe 模块 (WiFi 5)，Qualcomm QCA9882-BR4A 2T2R

产品概述

WPEQ-256ACN 由 Qualcomm Atheros QCA9882 无线电芯片提供支持，并采用 2×2 WiFi 5 技术，可实现更高的吞吐量性能、可靠性和范围。它旨在满足关键嵌入式应用程序的苛刻性能要求。

WPEQ-256ACN 将整体吞吐量大幅提升至 867Mbps。利用革命性的 WiFi 5 技术，WPEQ-256ACN 在吞吐量和范围方面树立了新的标杆，使其成为消费者和企业应用的理想选择，例如销售点、游戏机和医疗设备。

适用应用

  • 工业电脑
  • 车载路由器
  • 车载前排
  • 机器人
  • 车载电脑
  • 户外IPTV
  • 后终端无人机
  • 智能网关

参数特性

STANDARD
WI-FIIEEE 802.11ac/a/b/g/n
Chipset·Qualcomm Atheros QCA9882-BR4A
Host InterfaceWLAN : PCIe
RADIO
Antenna2 x IPEX MHF1 connectors
Operating Frequency802.11ac/a/b/g/n ISM Band
2.412GHz~2.484GHz

5.150GHz~5.850GHz

*Subject to local regulations

MODULATIONS
802.11bDSSS (DBPSK, DQPSK, CCK)
802.11gOFDM (BPSK, QPSK, 16-QAM, 64-QAM)
802.11nOFDM (BPSK, QPSK, 16-QAM, 64-QAM)
802.11aOFDM (BPSK, QPSK, 16-QAM, 64-QAM)
802.11acOFDM (BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM)
POWER & SENSITIVITY
WiFiPower – TX (± 2dBm)Sensitivity – RX
11b @11Mbps20dBm≤ -87dBm
11g @ 54Mbps16dBm≤ -74dBm
11gn HT20 @ MCS 715dBm≤ -70dBm
11gn HT40 @ MCS 715dBm≤ -68dBm
11a @ 54Mbps14dBm≤ -74dBm
11an HT20 @ MCS 713dBm≤ -71dBm
11an HT40 @ MCS 713dBm≤ -68dBm
11ac HT80 @ MCS 910dBm≤ -59dBm
POWER CONSUMPTION
Continue TX1050mA
Continue RX480mA
ENVIRONMENTAL
Operating VoltageDC 3.3V
Temperature Range-20~ 60°C (Operating)-30 ~ 75°C (Storing)
Humidity(Non-Condensing)10~ 85% (Operating)5 ~ 90% (Storing)
SIZE
Dimension (MM)50.8mm(±0.3mm) x 29.85mm(±0.3mm) x 4.1mm(±0.3mm)
Weight7.8g
SOFTWARE
DriverLinux
Security64/128-bits WEP, WPA, WPA2,802.1x
Miscellaneous
Warranty Period12 Month
HS Code8517620050


认证

USAEU RegionJapanCanada


环境合规



ROHSREACH
