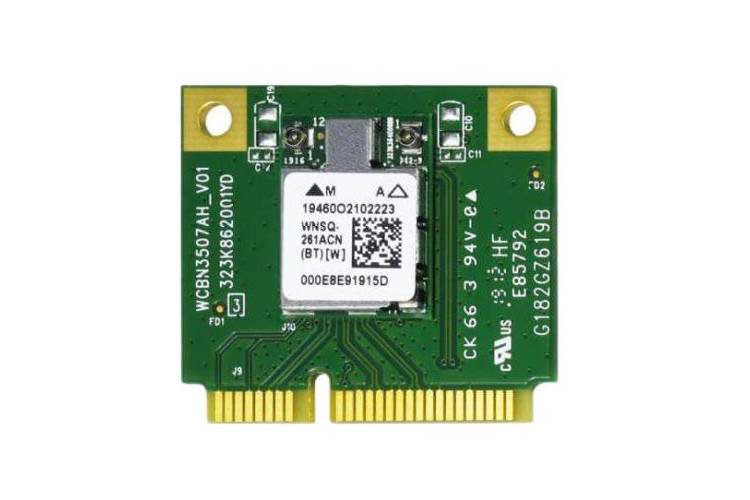

WPEQ-261ACN(BT)

  • 芯片组：Qualcomm Atheros QCA6174A-5
  • 天线：2 x IPEX MHF4 连接器，2T2R
  • 外形尺寸：半高MINI PCIe
  • 接口：PCIe：WLAN
  • 输出功率高达 18dBm
  • 支持：Windows 7/8.1/10、Linux（开源）推荐内核v4.0+
802.11ac/a/b/g/n Wi-Fi  半高Mini PCIe 模块 (WiFi 5) Qualcomm QCA6174A-5, 2T2R

产品概述

WPEQ-261ACN (BT) 是一种单芯片无线局域网 (WLAN) 组合解决方案，支持具有两个空间流 IEEE802.11ac/a/b/ 的 2×2 多用户多输入多输出 (MU-MIMO) g/n WLAN 标准。802.11N模式下载速度为300Mbps，AC网下载速度为867Mbps。WPEQ-261ACN（BT）集成了BT传输技术，用于短距离设备之间的语音和数据传输。WPEQ-261ACN (BT) 专为任何带有半高mini  PCIe 插槽的无线设备而设计。


适用应用

  • 工业电脑
  • 车载路由器
  • 车载前排
  • 机器人
  • 车载电脑
  • 户外IPTV
  • 后终端无人机
  • 智能网关

参数特性

STANDARD
WI-FIIEEE 802.11ac/a/b/g/n
ChipsetQualcomm Atheros QCA6174A-5
Host InterfaceWLAN : PCIe
RADIO
Antenna2 x IPEX MHF4 connectors（MAIN用于WLAN,AUX用于WLAN/BT）
Operating Frequency802.11ac/a/b/g/n ISM Band
2.412GHz~2.484GHz

5.150GHz~5.850GHz

*Subject to local regulations

MODULATIONS
802.11bDSSS (DBPSK, DQPSK, CCK)
802.11gOFDM (BPSK, QPSK, 16-QAM, 64-QAM)
802.11nOFDM (BPSK, QPSK, 16-QAM, 64-QAM)
802.11aOFDM (BPSK, QPSK, 16-QAM, 64-QAM)
802.11acOFDM (BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM)
POWER & SENSITIVITY
WiFiPower – TX (± 2dBm)Sensitivity – RX
11b @11Mbps18dBm≤ -76dBm
11g @ 54Mbps16dBm≤ -65dBm
11gn HT20 @ MCS 716dBm≤ -64dBm
11gn HT40 @ MCS 716dBm≤ -61dBm
11a @ 54Mbps10.5dBm≤ -65dBm
11an HT20 @ MCS 710dBm≤ -64dBm
11an HT40 @ MCS 710dBm≤ -61dBm
11ac VHT80 @ MCS 96dBm≤ -51dBm
POWER CONSUMPTION
Continue TX610mA
Continue RX285mA
ENVIRONMENTAL
Operating VoltageDC 3.3V
Temperature Range-40~ 70°C (Operating)-40 ~ 85°C (Storing)
Humidity(Non-Condensing)5 ~ 90% (Operating)5 ~ 90% (Storing)
SIZE
Dimension (MM)30mm(±0.3mm) x 26.8mm(±0.3mm) x 2.5mm(±0.3mm)
Weight2.6g
SOFTWARE
DriverWindows 7/8.1/10
Linux (Open Source), Recommend Kernel v4.0+
Security64/128-bits WEP, WPA, WPA2, WPA3, 802.1x
Miscellaneous
Warranty Period12 Month
HS Code8517620050


认证

USAEU RegionJapanCanada
Australia / NZ
China Taiwan Brazil
Mexico


环境合规



ROHSREACH
