产品概述

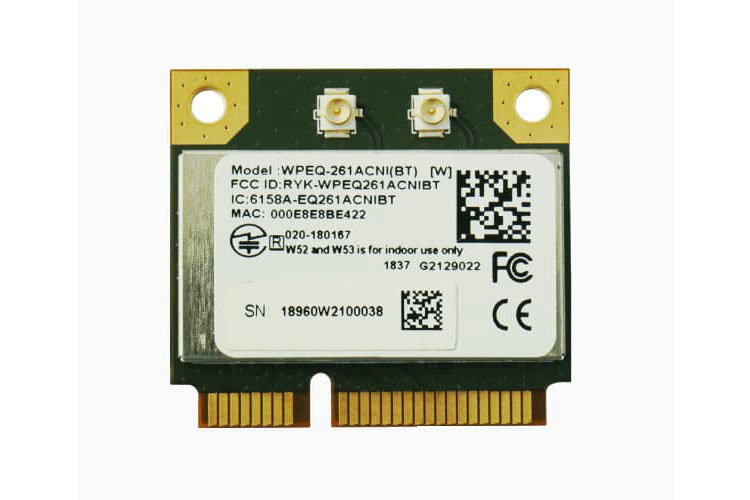

WPEQ-261ACNI(BT) 是高性能 802.11ac/a/b/g/n 双频 2T2R 工业级 (-40°C ~85°C) Wi-Fi 半高 MIN PCI-e 模块,多输出 (MU- MIMO)具有两个空间流 IEEE802.11 ac/a/b/g/n WLAN 标准,旨在提供 WLAN 和低能耗技术的卓越集成。(WiFi 5)
它支持 Windows 和 Linux 驱动程序解决方案。WPEQ-261ACNI(BT) 使用 QCA6174A-5 以及 Windows 和 Linux 驱动程序,为自动化/机器人各种应用提供出色的解决方案。采用最新的 802.11ac 解决方案。WPEQ-261ACNI(BT) 是 2.4GHz+5GHz 的双频 AC。N网下载速度为300Mbps,AC网下载速度为867Mbps。WPEQ-261ACNI(BT)集成了BT传输技术,用于短距离设备之间的语音和数据传输。
适用应用
- 工业电脑
- 车载路由器
- 车载前排
- 机器人
- 车载电脑
- 户外IPTV
- 后终端无人机
- 智能网关
参数特性
STANDARD |
WI-FI | IEEE 802.11ac/a/b/g/n |
Chipset | ·Qualcomm Atheros QCA6174A-5 |
Host Interface | WLAN : PCIe |
RADIO |
Antenna | 2 x IPEX MHF1 connectors(ANT1用于WLAN/BT,ANT2用于WLAN) |
Operating Frequency | 802.11ac/a/b/g/n ISM Band |
2.412GHz~2.484GHz 5.150GHz~5.850GHz *Subject to local regulations |
MODULATIONS |
802.11b | DSSS (DBPSK, DQPSK, CCK) |
802.11g | OFDM (BPSK, QPSK, 16-QAM, 64-QAM) |
802.11n | OFDM (BPSK, QPSK, 16-QAM, 64-QAM) |
802.11a | OFDM (BPSK, QPSK, 16-QAM, 64-QAM) |
802.11ac | OFDM (BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM) |
POWER & SENSITIVITY |
WiFi | Power – TX (± 2dBm) | Sensitivity – RX |
11b @11Mbps | 15dBm | ≤ -91dBm |
11g @ 54Mbps | 15dBm | ≤ -75dBm |
11gn HT20 @ MCS 7 | 13dBm | ≤ -71dBm |
11gn HT40 @ MCS 7 | 13dBm | ≤ -69dBm |
11a @ 54Mbps | 13dBm | ≤ -65dBm |
11an HT20 @ MCS 7 | 12.5dBm | ≤ -74dBm |
11an HT40 @ MCS 7 | 12.5dBm | ≤ -71dBm |
11ac VHT80 @ MCS 9 | 10dBm | ≤ -63dBm |
POWER CONSUMPTION |
Continue TX | 610mA |
Continue RX | 285mA |
ENVIRONMENTAL |
Operating Voltage | DC 3.3V |
Temperature Range | -40~ 85°C (Operating) | -40 ~ 85°C (Storing) |
Humidity(Non-Condensing) | 10~ 95% (Operating) | 10 ~ 95% (Storing) |
SIZE |
Dimension (MM) | 29.85mm(±0.15mm) x 26.65mm(±0.15mm) x 2.65mm(±0.2mm) |
Weight | 3.5g |
SOFTWARE |
Driver | Windows7/8.1/10 |
Linux(Open Source), Recommend Kernel v4.0+
|
Security | 64/128-bits WEP, WPA, WPA2,WPA3,802.1x |
Miscellaneous |
Warranty Period | 12 Month |
HS Code | 8517620050 |
认证
环境合规
![](/resources/upload/ab554a9bbea3e99/1659332739883.png) | ![](/resources/upload/ab554a9bbea3e99/1659332742237.jpeg) |
|
|
ROHS | REACH |
|
|
