WPEQ-276AX

Chipset: Qualcomm Atheros QCN9072
Antenna: 2 x IPEX connectors, 2T2R
Form Factor: Mini PCIe
Interface: PCIe
Support: Linux (Open Source)

MU-MIMO WiFi 6 module for the 6GHz band, Mini PCIe Module, Qualcomm Atheros QCN9072, 2T2R

Product Overview

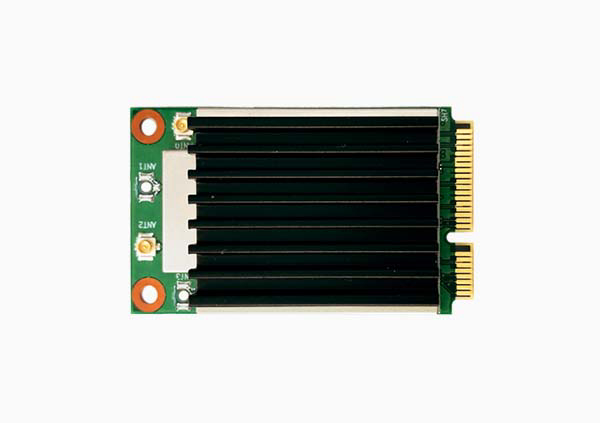

The first WiFi-6E (802.11ax) Qualcomm based AP solution on module formfactor from SparkLAN. WPEQ-276AX, is based on QCN9072 chipset solution. This is a true enterprise based wireless module that powers 2T2R (2×2) MU-MIMO, in 6Ghz Single band mode, hitting a theoretical speed of up to 2.4Gbps with 160MHz support.

Unlike typical Qualcomm reference design around QCN9072, WPEQ-276AX shrink the traditional 50mmx50mm M.2 E-Key design to a more popular Mini PCIe Full size formfactor of just 50mm x 30mm, run at 3.3V voltage. Provides a greater versatility to use on more common seen design.

WPEQ-276AX performs both AP and STA functionality with 2 spatial streams, recommended more towards hardware AP applications as it supports 4096-QAM, OFDMA technology, makes it perfect for heavy lifting applications such as Enterprise grade AP, UTM, public & transportation Hotspot, and other industrial capable Access Points.

Suitable Application

Applications include Multimedia Router and AP solution., etc.

Specification

STANDARD
WI-FI	IEEE 802.11ax 2T2R 6G
Chipset	Qualcomm Atheros QCN9072
Host Interface	WLAN : PCIe

RADIO
Antenna	2 x IPEX MHF1 connectors
Operating Frequency	802.11ax ISM Band
	5.925~7.125GHz *Subject to local regulations

MODULATIONS
802.11ax	OFDMA (BPSK, QPSK, DBPSK, DQPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM, 4096-QAM)

POWER & SENSITIVITY
WiFi	Power – TX (± 2dBm)	Sensitivity – RX
11ax HE20 @ MCS 11 (6GHz)	13dBm	≤ -60dBm
11ax HE40 @ MCS 11 (6GHz)	13dBm	≤ -56dBm
11ax HE80 @ MCS 11 (6GHz)	13dBm	≤ -53dBm
11ax HE160 @ MCS 11 (6GHz)	13dBm	≤ -51dBm

POWER CONSUMPTION
Continue TX	1288mA(Max.)
Continue RX	965mA(Max.)

ENVIRONMENTAL
Operating Voltage	DC 3.3V
Temperature Range	-20~ 70°C (Operating)	-20 ~ 90°C (Storing)
Humidity(Non-Condensing)	5 ~ 90% (Operating)	5 ~ 90% (Storing)
