产品概述

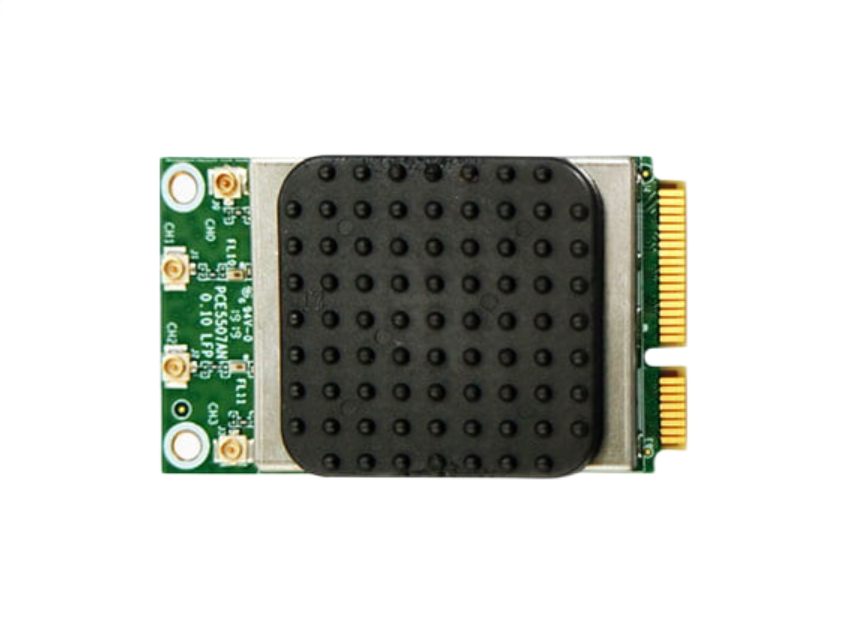

SparkLAN WPEQ-450AC 是一款高度集成的无线 LAN (WLAN)、WiFi 5 802.11ac 4×4 (4T4R) Mini-PCIE 模块，支持具有多用户 MIMO（多输入多输出）无线的 4 流 802.11ac局域网（WLAN）。它在单芯片 Mini-PCIe 模块中集成了 4×4 (4T4R) WLAN MAC、基带和单频射频。WPEQ-450AC 通过 Mini-PCIe 为 M2M（机器对机器）连接产品/设备提供了具有成本效益的解决方案，它可以轻松集成到最熟悉的操作系统（Linux）中。
WPEQ-450AC 是一款 Wave2 11ac 无线电，可帮助优质 WiFi 路由器、网关、机顶盒和范围扩展器支持联网家庭中的更多设备和要求更高的应用。支持80+80MHz频道，近距离容量翻倍
适用应用
- 工业电脑
- 车载路由器
- 车载前排
- 机器人
- 车载电脑
- 户外IPTV
- 后终端无人机
- 智能网关
参数特性
STANDARD | ||
| WI-FI | IEEE 802.11ac/a/n | |
| Chipset | ·Qualcomm Atheros QCA9984 | |
| Host Interface | WLAN : PCIe | |
RADIO | ||
| Antenna | 4 x IPEX MHF1 connectors | |
| Operating Frequency | 802.11ac/a/n ISM Band | |
5.150GHz~5.850GHz *Subject to local regulations | ||
MODULATIONS | |
| 802.11n | OFDM (BPSK, QPSK, 16-QAM, 64-QAM) |
| 802.11a | OFDM (BPSK, QPSK, 16-QAM, 64-QAM) |
| 802.11ac | OFDM (BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM) |
POWER & SENSITIVITY | ||
| WiFi | Power – TX (± 2dBm) | Sensitivity – RX |
| 11a @ 54Mbps | 17dBm | ≤ -72dBm |
| 11an HT20 @ MCS 7 | 16dBm | ≤ -68dBm |
| 11an HT40 @ MCS 7 | 15dBm | ≤ -66dBm |
| 11ac VHT80 @ MCS 9 | 15dBm | ≤ -56dBm |
| 11ac VHT80+80 @ MCS 9 | 14dBm | ≤-56dBm |
POWER CONSUMPTION | ||
| Continue TX | 2250mA | |
| Continue RX | 750mA | |
ENVIRONMENTAL | ||
| Operating Voltage | DC 3.3V | |
| Temperature Range | -20~ 70°C (Operating) | -20 ~ 90°C (Storing) |
| Humidity(Non-Condensing) | 5~ 90% (Operating) | 5 ~ 90% (Storing) |
SIZE | ||
| Dimension (MM) | 50.80mm(±0.3mm) x 29.85mm(±0.3mm) x 7.8mm(±0.3mm) | |
| Weight | 12.6g | |
SOFTWARE | |
| Driver | Linux |
| Security | 64/128-bits WEP, WPA, WPA2,WPA3,802.1x |
Miscellaneous | ||
| Warranty Period | 12 Month | |
| HS Code | 8517620050 | |
认证
 |  |  |  |
| USA | EU Region | Japan | Canada |
环境合规
 |  | ||
| ROHS | REACH |
